Potatoes: BulkGrader
The DVC Machinevision BulkGrader is a vision system that accurately measures and classifies potatoes in bulk. Using intelligent software and reliable 3D cameras, the BulkGrader provides potato processors with insight into the bulk flows to and/or from the bunkers.
24x7 monitoring
Consistent quality
Why bulk measurement is essential
To meet specified product requirements, it is essential to determine the dimensions of the potatoes in the bulk flow. Accurate information on potato dimensions is often lacking, meaning that the contents of the bunkers are not fully known either. Manual spot checks are snapshots of the bulk flow and can give a distorted picture.
The BulkGrader from DVC Machinevision
Our BulkGrader truly measures in bulk. The system measures the length and diameter of 40% to 80% of the potatoes in the bulk flow. Using smart software, the system provides real-time information on the expected volume of the end product.
The data from the measured potatoes is analysed at regular intervals, after which the average potato length and specific length and diameter groups are displayed. Depending on the BulkGrader’s position in the process, you can monitor the bulk flow to or from the bunkers.

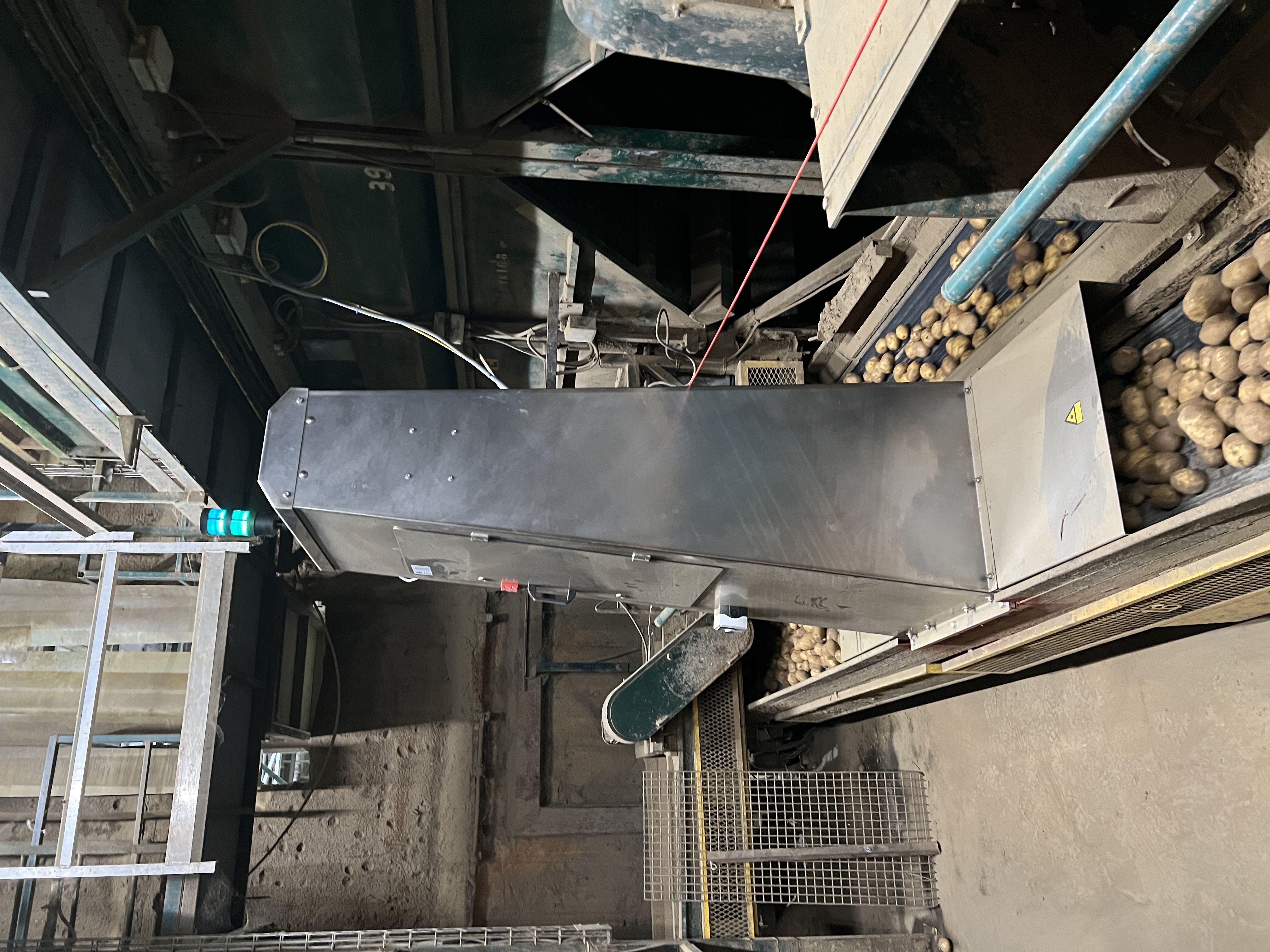

The BulkGrader can be installed at any desired location. Our staff will take care of the installation, training and – if necessary – remote support on working days during office hours.
Purpose of the BulkGrader
- To obtain accurate information at an early stage about the characteristics of the product flow to the bunkers or from the bunkers to production.
- To increase and optimise production output and the efficiency of the production process.
User interface
- Intuitive user interface with live data and graphs.
- Easy configuration of product-specific inspection parameters.
- Full integration with SCADA/MES is possible.
- Remote access possible via IXON, TeamViewer or the customer’s VPN.
Specifications
- Dimensions:
o Conveyor belt width: 500–1200 mm.
o Camera housing height: +/- 2200 mm.
o Length: 1670 mm, including covers. - Measuring speed: up to 70 metres per minute.
- Accuracy: +/- 1.4 mm.
- Product inspection yield: 40%–80%, depending on conveyor type and load.
- Distance from the BulkGrader to the control cabinet: maximum 100 metres.
- Output: Ethernet/IP or Profinet, every 15 seconds.
Benefits
- Optimisation of cutting efficiency and product quality.
- Reduced waste thanks to accurate data.
- Data-driven adjustments to the production process.
- Higher yield and a consistent end product.
Features
- Advanced 3D camera and software capable of detecting stacked and adjacent potatoes.
- Real-time output of measurement data in length and diameter groups.
- Modular design – up to 4 cameras per control cabinet.
- Also suitable for chevron and profiled conveyor belts.
More than 20 BulkGraders are already in operation worldwide!

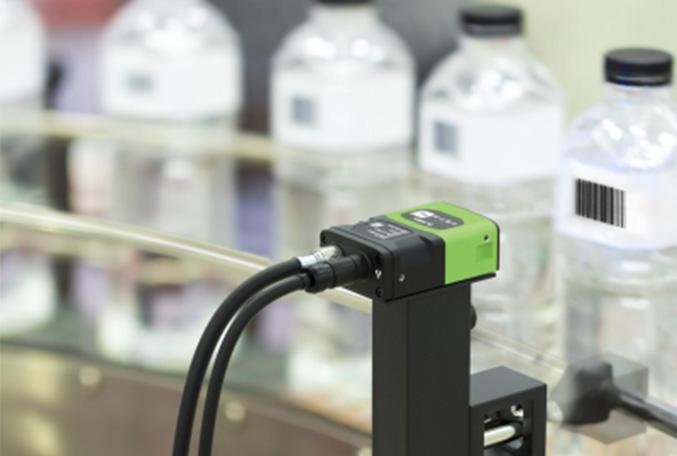

Seal and Label Inspection
