Cheese:
CheeseGuard Series
The DVC Machinevision CheeseGuard Series comprises advanced visual inspection systems designed to detect defects on cheese. The systems are available for various applications and different types of cheese.
All configurations of our CheeseGuard systems are fully automated in-line vision systems, developed for 24/7 use in industrial cheese-processing environments. Thanks to advanced camera technology and optimised lighting, they inspect with high accuracy at a very detailed level.
The systems feature a stainless steel housing (IP68/IP67), a powerful vision controller and an industrial 17-inch touchscreen HMI (IP65). The special food-grade protective cover on both the housing and the touchscreen allows for thorough cleaning.

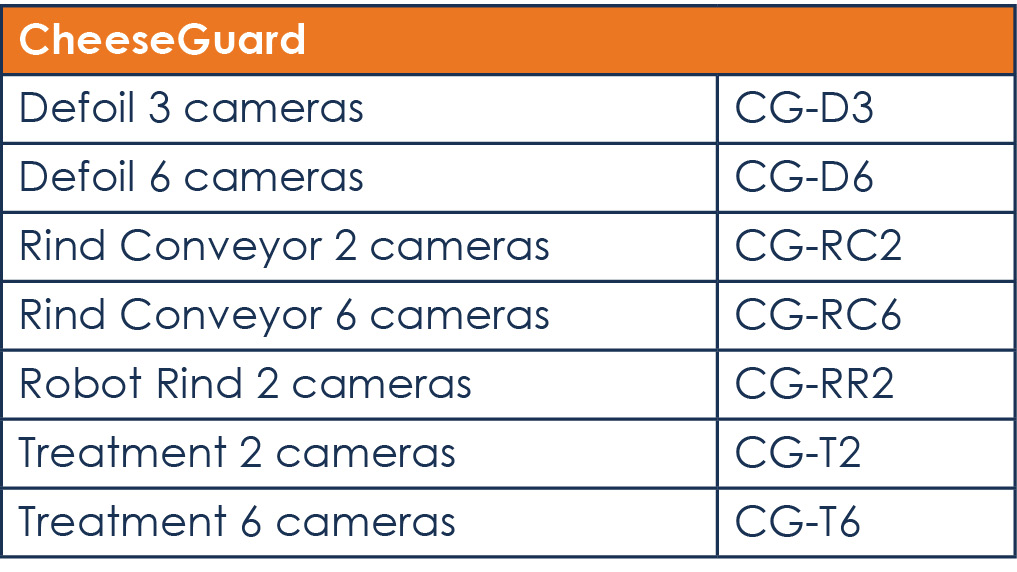

The CheeseGuard Series comprises:
For detecting blue foil residues and mould on round and rectangular cheeses.
For the detection of rind residues and mould following automated rind removal from round and rectangular cheeses.
For the detection of rind residues and mould following automated and robotised cheese trimming of round cheeses.
For detecting surface defects on round and rectangular cheeses (such as wood splinters and/or green, white and black mould).

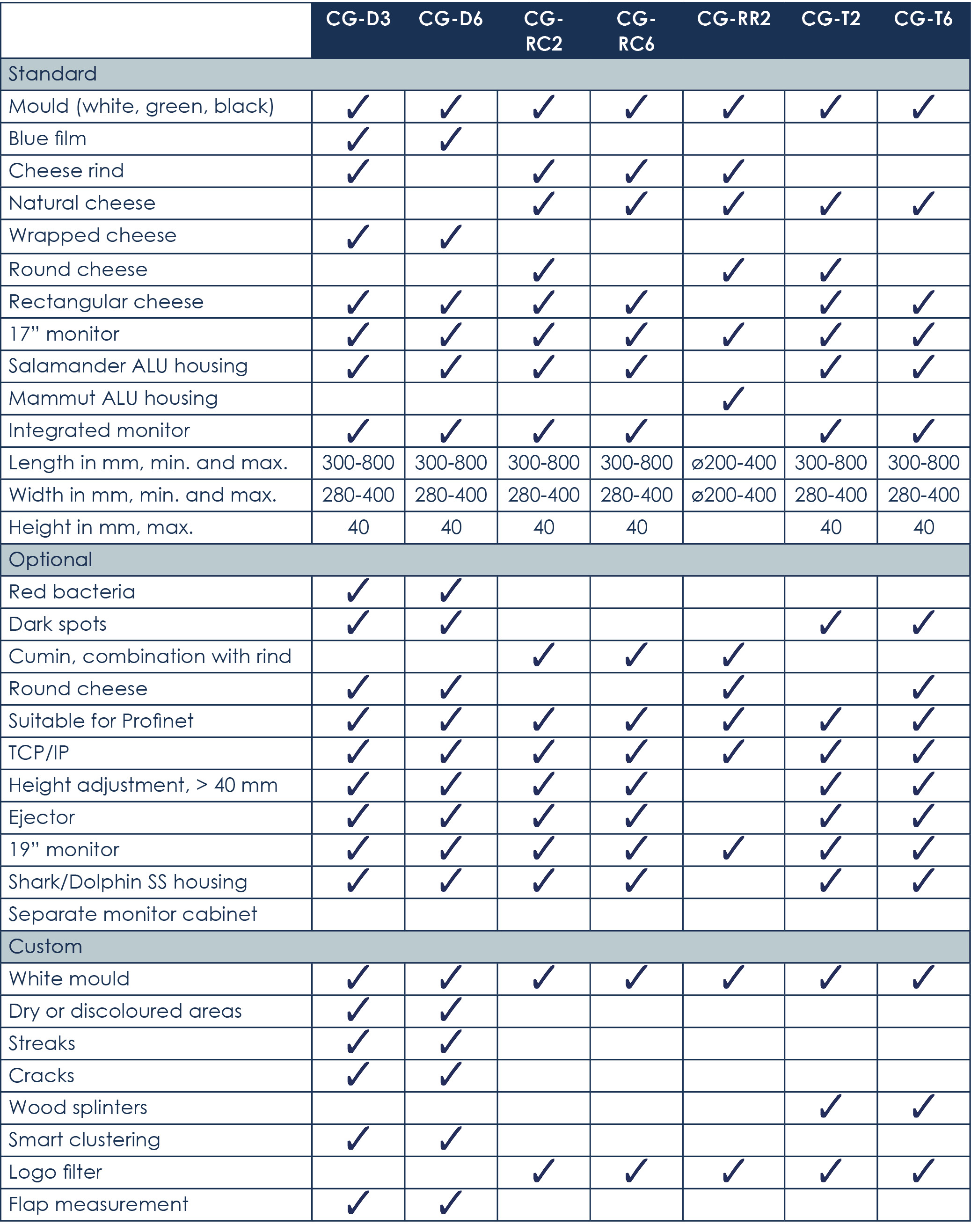

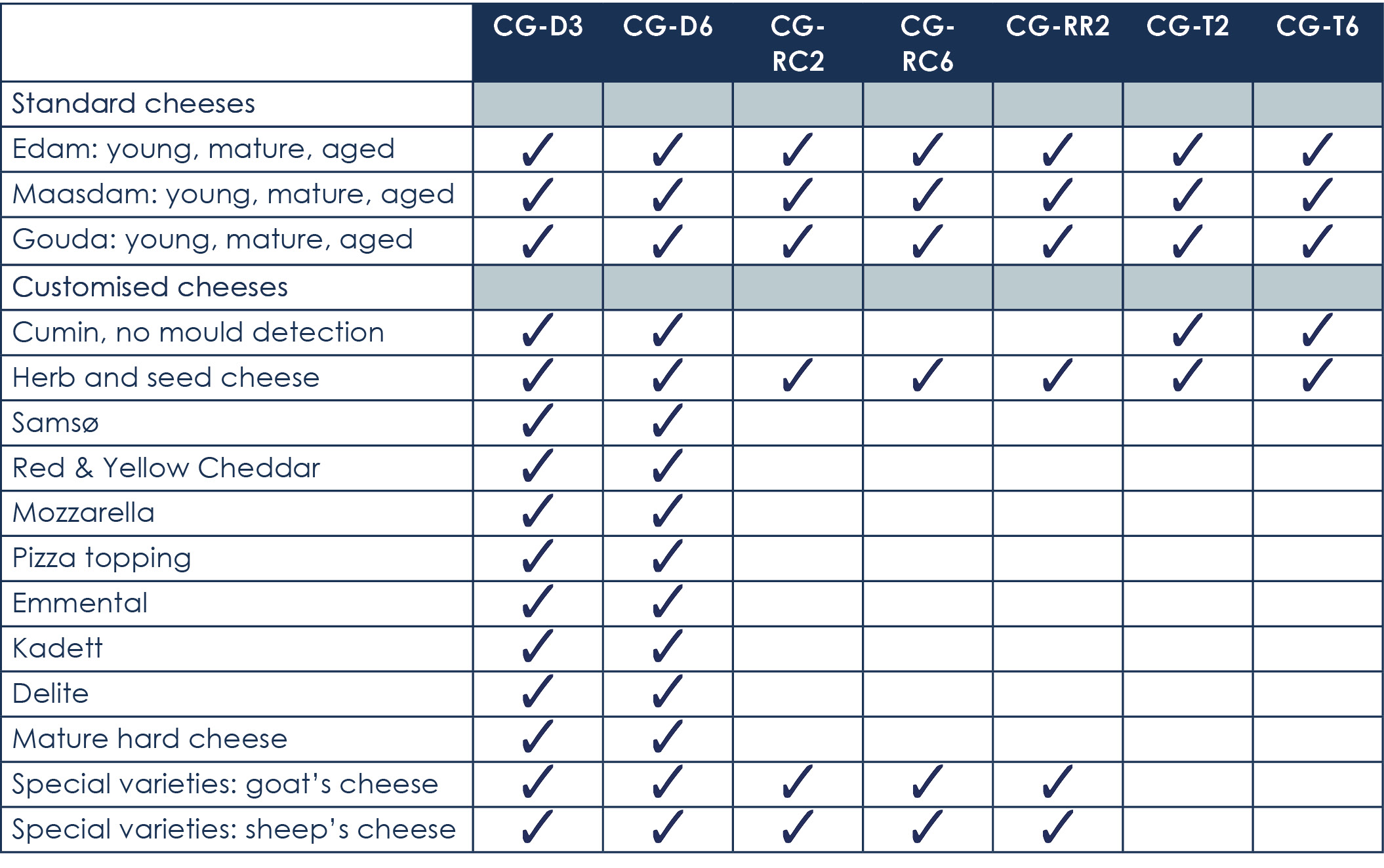

Product overview
Tip: customisation is always possible. This could include the detection of other imperfections and the inspection of different types of cheese.
