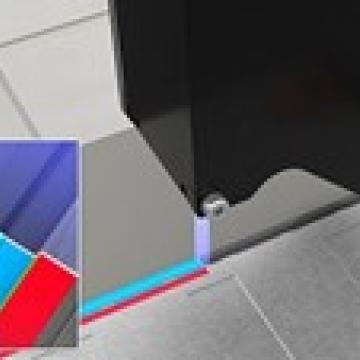

The remastered Gocator 2600 Series

The remastered Gocator 2600 Series has been optimized for faster default scan speeds, enhanced data quality, increased scanning versatility, and higher 4K+ resolutions.

This remastered sensor lineup can be used to inspect a wide variety of targets from small parts in EV Battery, Consumer Electronics, and Semiconductor manufacturing, to larger coverage applications in Food Processing, Building Materials, Automotive, Rubber & Tire, and general factory automation.

Why you need 3D

3D technology captures the shape of an object as opposed to 2D which only captures contrast. With 3D shape, you can measure geometric features on a surface regardless of surface color.

In summary, 3D offers

• Volumetric measurement (X,Y, and Z-axis) provides shape and position related parameters
• Contrast invariant, ideal for inspecting low contrast objects
• Immune to minor lighting variation or ambient light
• Higher repeatability due to integrated optics, lighting, and pre-calibration
• Simpler to build multi-sensor setups for large object inspection

• 9-Megapixel Imager
• Up to 4192 Points per Profile for High-Resolution Measurement and Inspection
• X Resolutions Up to 2.5 Microns
• Z Repeatability up to 0.2 Microns
• Fields of View Up to 2 m (at 0.55 mm X Resolution)
• On-Sensor Measurement Tools and I/O Connectivity
• Native Multi-Sensor Alignment and Networking Support
